HomeConnection and transformation centersLow Voltage Boards (LVB)addibo

addibo

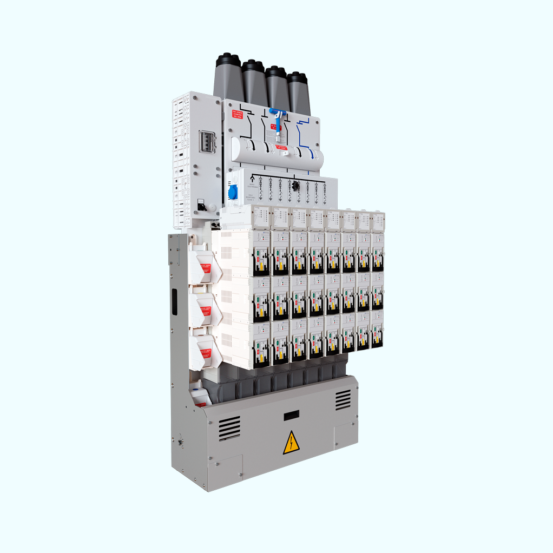

Low voltage switchboard with insulated busbar. Different addibo options are available depending on the required smartization in the low voltage network.

TECHNICAL DETAILS

  • Rated voltage: 440 V
  • Rated current: up to 1600 A
  • Rated frequency: 50/60 Hz
  • Withstand voltage at industrial frequency: 2.5 kV active parts y 10 kV to ground
  • Lightning impulse withstand voltage: 20 kV
  • Short-circuit current: up to 25 kA 1 s
  • Internal arc classification: IAC 25 kA 1 s

STANDARDS AND CERTIFICATIONS

  • IEC 61439

RANGE PRODUCT

  • addibo.compact
  • addibo.urban
  • addibo.smart
