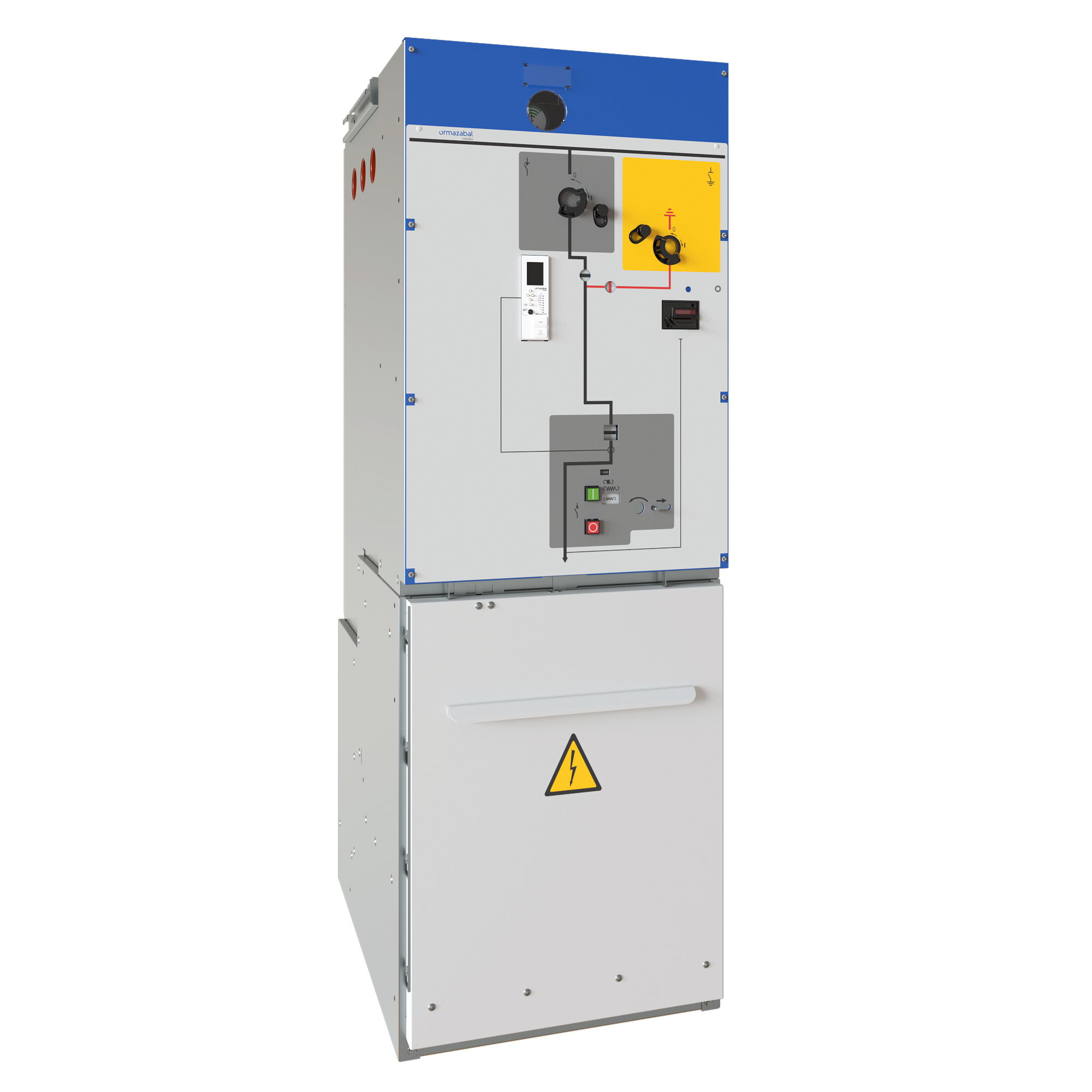

cgm.3

Modular and compact switchgear with integral gas insulation.
Up to 40.5 kV.

TECHNICAL DETAILS

  • Rated voltage: up to 38 kV (IEEE)/ 40,5 kV (IEC)
  • Rated current: up to 630 A
  • Rated frequency: 50/60 Hz
  • Short-circuit current: up to 25 kA (1-3 s)
  • Internal arc classification: IAC AFL(R) up to 25 kA 1 s
  • Outdoor installation option
  • High corrosion resistance HCR option

STANDARDS AND CERTIFICATIONS

  • IEC
  • IEEE
  • ENA
  • GB
